Product #: HBST-215P-50-S
Stellar PRO Linear Highbay 215P 5000K(HBST)
Stellar PRO Linear Highbay(HBST) – The ATG Stellar Pro Linear High Bay is a high-performance fixture built for versatility, designed to meet DLC’s stringent Premium requirements. It is suitable for use in damp locations and can operate in temperatures ranging from -40°C to 65°C, making it ideal for various indoor commercial applications. Engineered for longevity, the fixture has an L70 lifetime of over 300,000 hours, ensuring reliable performance in suspended or mounted ceiling environments.
REQUEST A QUOTE
- Specifications
- Description
- Resources & Downloads
- Related Products
Specifications
Input Voltage
120-277VAC & 347-480VAC
Wattage
165W/180W/215W SELECTABLE
CCT
5000K
Warranty
10 Years
L70 lifetime
195,000 Hrs
Dimming
0-10V
Lens Type
40°x90°, 90°x90°
Lumens
33605 LM
Efficacy
158-168 LM/W
Description
3-Step Power Select Technology
Each fixture allows on-site selection between
3 wattage levels.

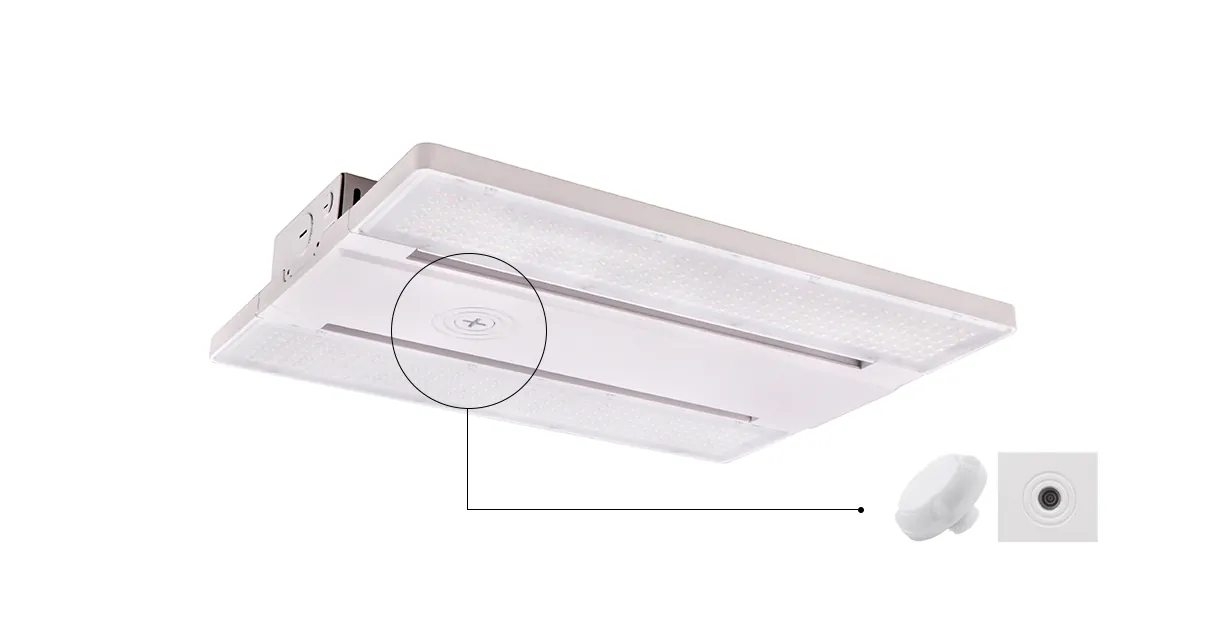

Field Installable or Plug and Play
Features a pre-installed sensor receptacle, allowing for easy,
no-wiring installation of microwave or PIR motion sensors.
Bluetooth Mesh (LLLC)
Compatible with Silvair BLE mesh controls for
high-level lighting management.

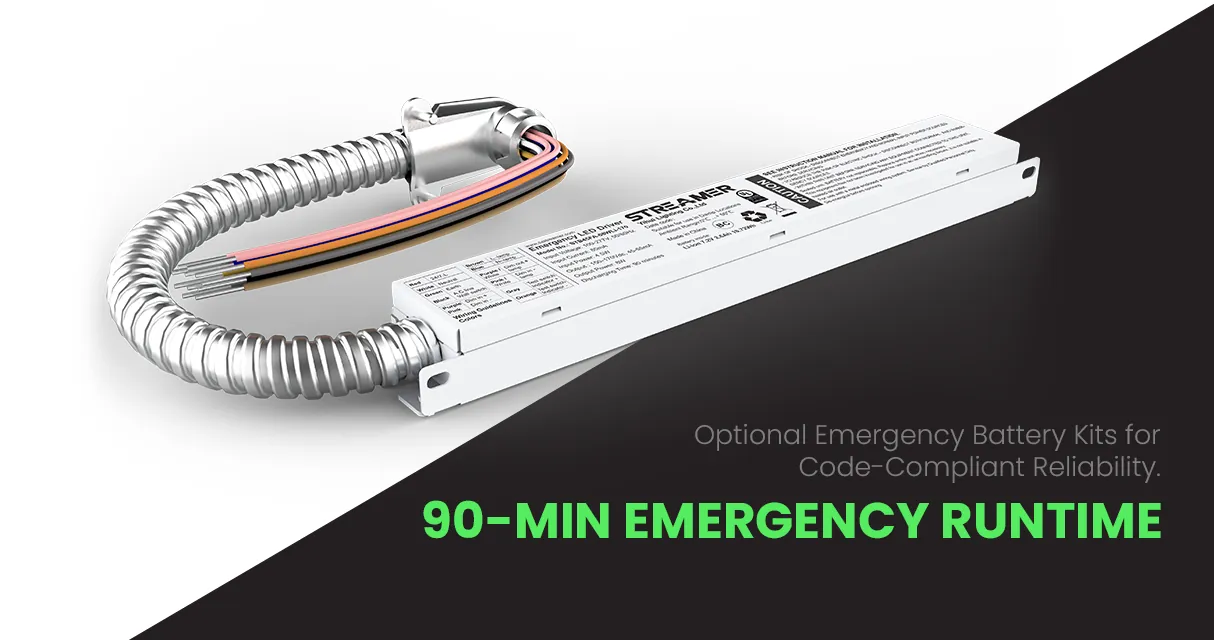

Emergency Ready
Compatible with 8W Li-ion battery backup
options for emergency safety.

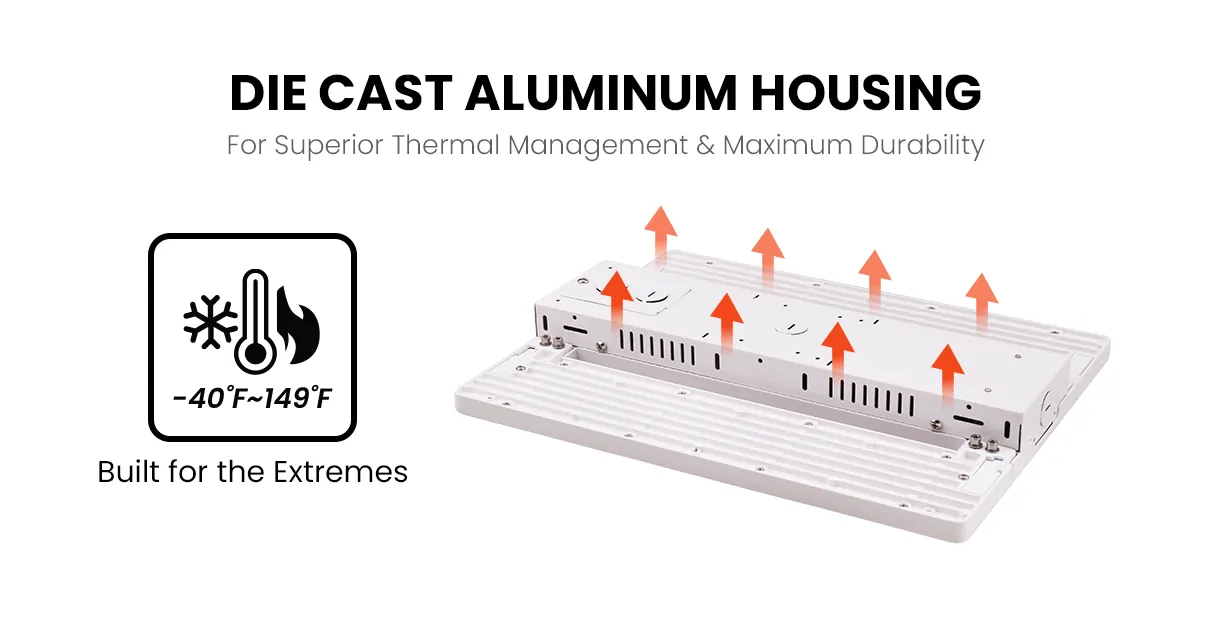

Extreme Temperature Operation
Designed to operate in ambient temperatures
ranging from -40°C up to 65°C (-40°F to 149°F).
High Efficacy
Delivers up to 168 lm/W, significantly
reducing energy consumption.

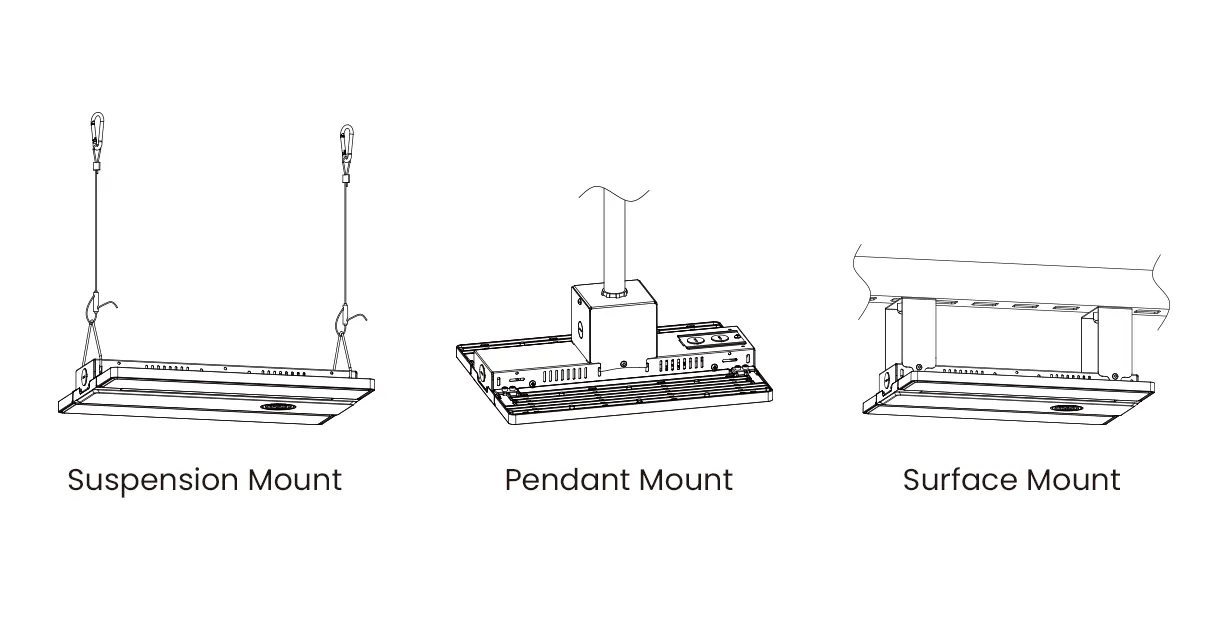

Multiple Mounting Methods
Upports Suspension (V-hook & chain included),
Pendant, and Surface mounting.
Resources & Downloads
spec sheet
product brochure
installation guide
ies files
