Product #: DR8T-35-T2-G2
Universal Downlight 8”(DR)
The ATG 8-Inch Selectable Commercial LED Downlight is designed for easy installation into a hollow opening, creating a seamless recessed look. It includes a built-in clip that secures it snugly within an existing fitting. The fixture is both power and color switchable, offering adjustable wattages (16W, 22W, 26W, 30W, 35W) and CCT options (2700K, 3000K, 3500K, 4000K, 5000K) for flexible lighting customization. With an operating temperature range of -4°F (-20°C) to 104°F (40°C), it supports 0-10V dimming and features a power factor >0.9 and THD <20%. Optional accessories, such as a Goof Ring, New Construction Plate, and Emergency Battery Backup, are sold separately.
REQUEST A QUOTE
- Specifications
- Description
- Resources & Downloads
- Related Products
Specifications
Input Voltage
120-277VAC
Wattage
16W/22W/26W/30W/35W SELECTABLE
CCT
2700K/3000K/3500K/4000L/5000K SELECTABLE
5 Year Warranty
Yes
L70 lifetime
>50,000 Hrs
Dimming
0-10V

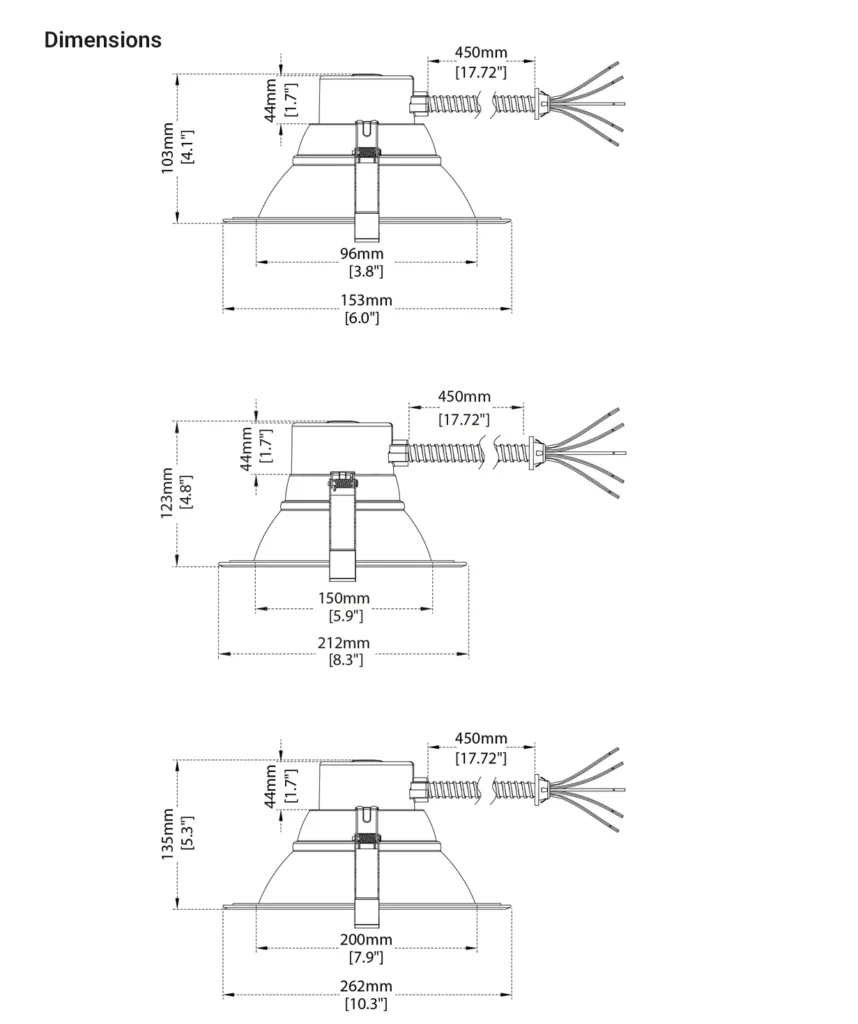

Dimension
8 inch
Lumens
3500 LM
Efficacy
100 LM/W
Description

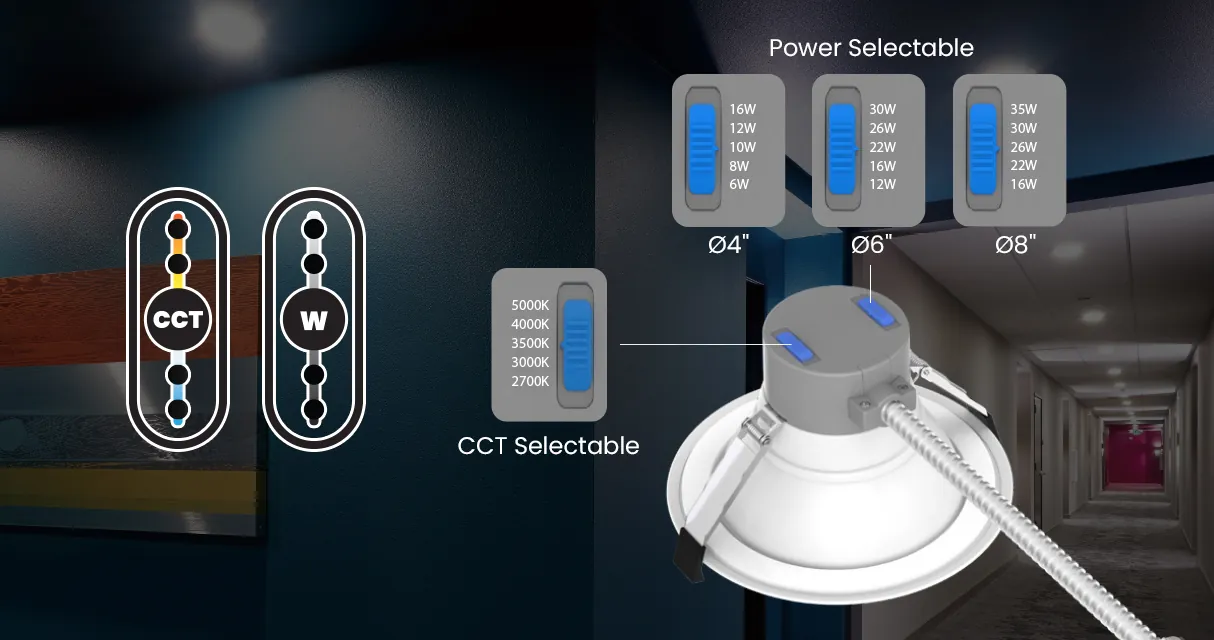

1 Fixture. 25 Possibilities.
5 CCT Selectable: 2700K, 3000K, 3500K, 4000K, and 5000K to match any space.
5-Level Power Selectable:
4″ Model (DR4T): Selectable between 6W / 8W / 10W / 12W / 16W.
6″ Model (DR6T): Selectable between 12W / 16W / 22W / 26W / 30W.
8″ Model (DR8T): Selectable between 16W / 22W / 26W / 30W / 35W.

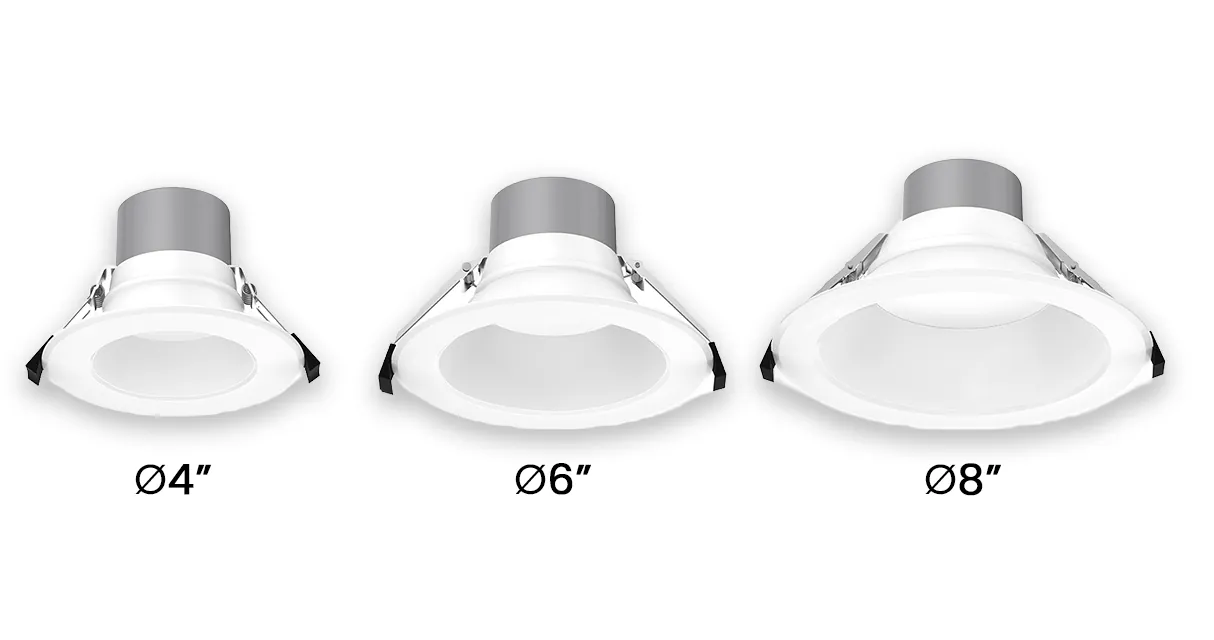

4’’ , 6’’, 8’’ in size
Available in 4″, 6″ & 8″ sizes to accommodate
common ceiling cutouts.

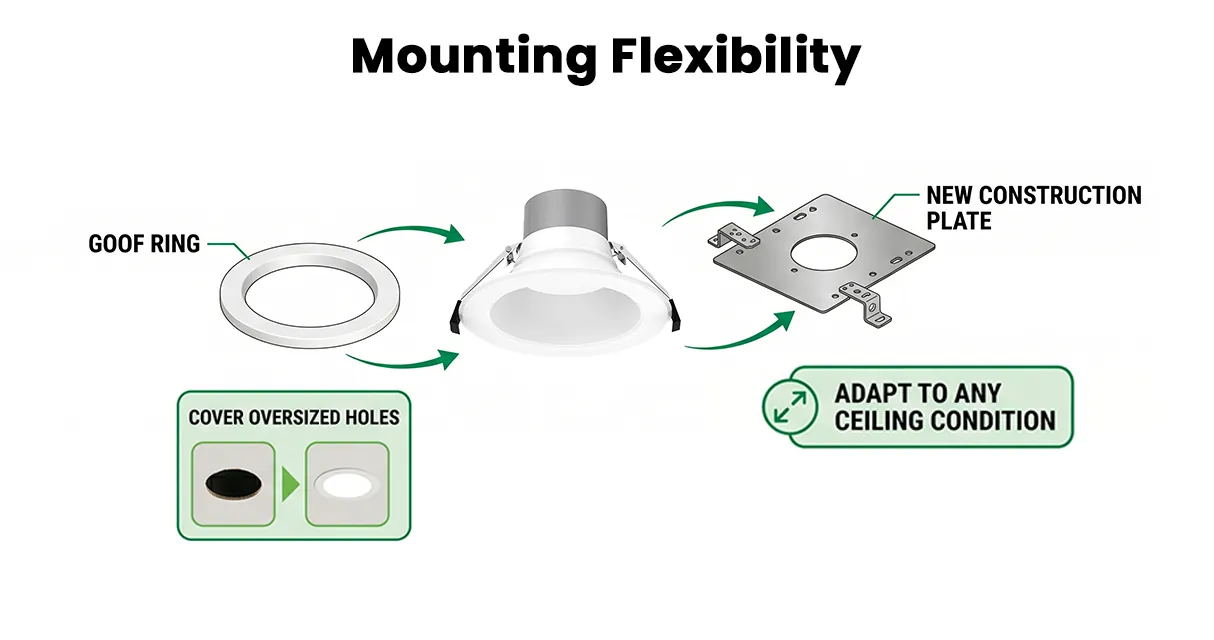

Mounting Flexibility
Available with optional goof rings (for covering oversized holes) and
new construction plates to adapt to any ceiling condition.

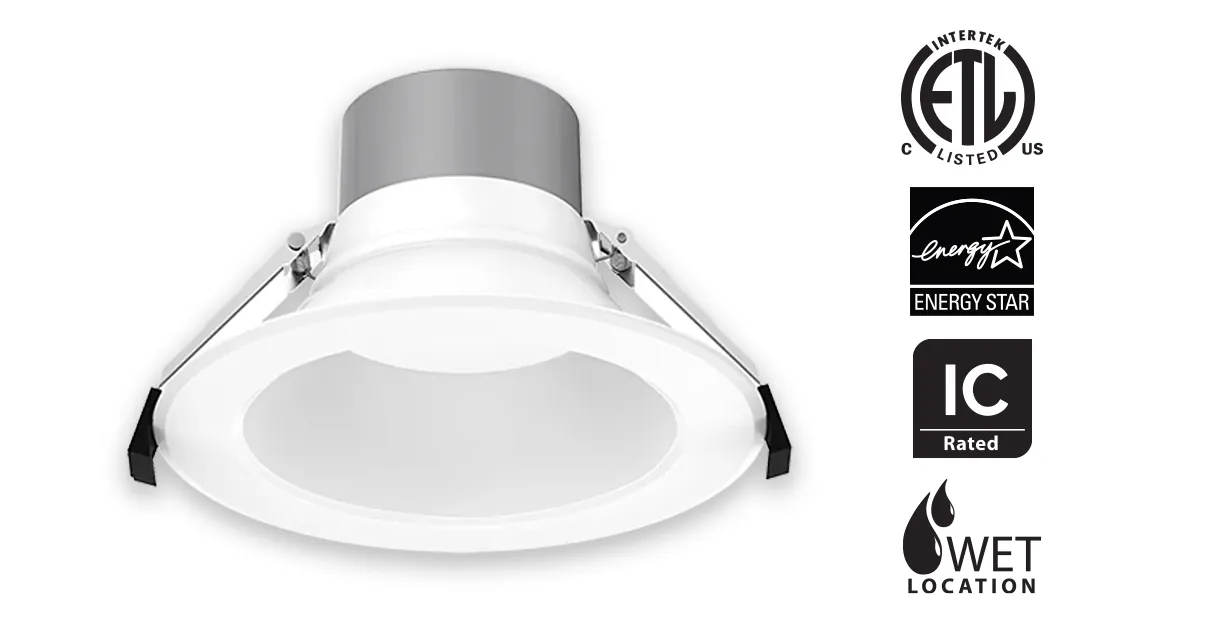

Certified Reliability & Safety
ETL listed for safety and Energy Star certified for high-efficiency operation.
The front of the fixture is IP54 rated for protection against dust and moisture.

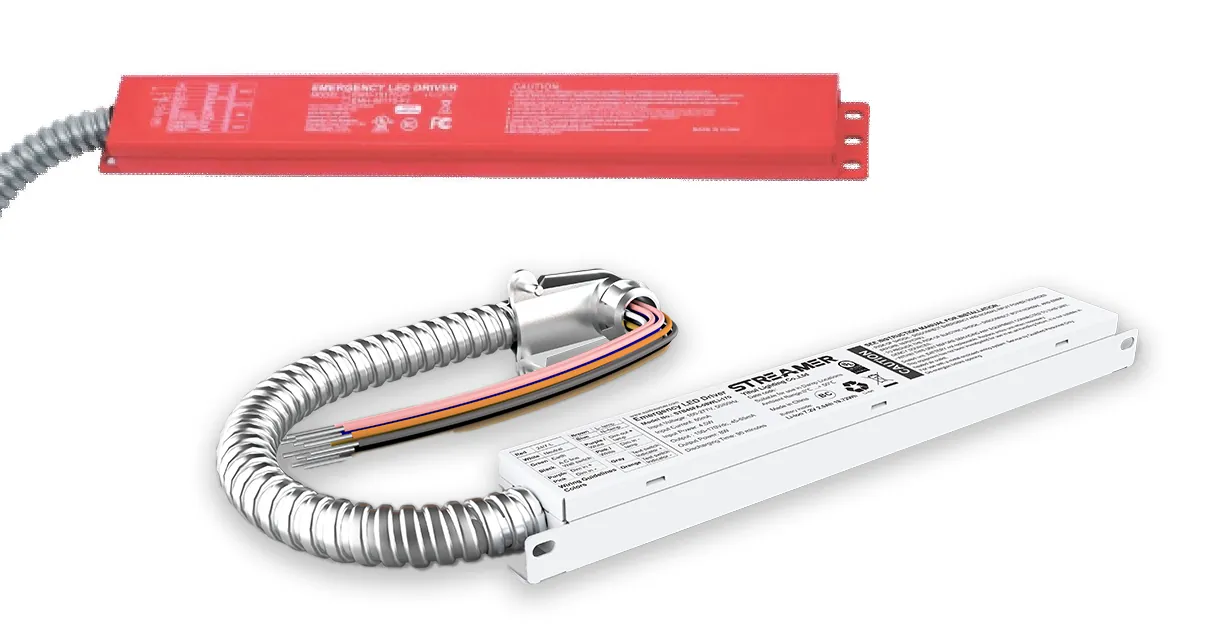

Emergency Battery Backup optional(sold separately)
Optional emergency backup unit sold separately
to fit your project requirements.
Resources & Downloads
spec sheet
product brochure
installation guide
