Product #: ECDK22-30W-T2-G3

Troffer Retrofit Kit G3 2×2(ECDK)

The DUO Direct Kit sounds like a highly versatile and efficient lighting solution for retrofit applications. By allowing you to easily upgrade existing luminaires in 2×2, or 2×4 sizes to LED, it offers the flexibility to improve lighting performance without replacing the entire fixture. The selectable wattages and CCT (Correlated Color Temperature) settings provide customization for different environments and needs, whether it’s for office spaces, hallways, or other indoor areas. The low-profile, low-glare, and low-flicker features are particularly important for creating comfortable and high-quality lighting conditions, and the option for emergency backup ensures safety in case of power interruptions. The addition of control options like BLE Mesh and Circuit Level control enhances energy efficiency and adaptability. Plus, the Surface Mount Kit is a smart feature for areas that were previously not lit or require a fast retrofit.

REQUEST A QUOTE
  • Specifications
  • Description
  • Resources & Downloads
  • Related Products

Specifications

Input Voltage
120-277VAC
Wattage
15W/18W/25W/30W SELECTABLE
CCT
3000K/3500K/4000K/5000K/6500K SELECTABLE
Warranty
5 YEARS
L70 lifetime
>186,000 Hrs
Dimension
2X2
Dimming
0-10V
Lumens
4814 LM
Efficacy
145-171 LM/W

Description

Power & CCT Selectable

5 CCT Options: Users can switch between 3000K, 3500K, 4000K, 4500K,and 5000K.

4 Wattage Options:  2×2: 15W/18W/25W/30W.2×4: 20W/28W/34W/41W.

Power CCT Selectable

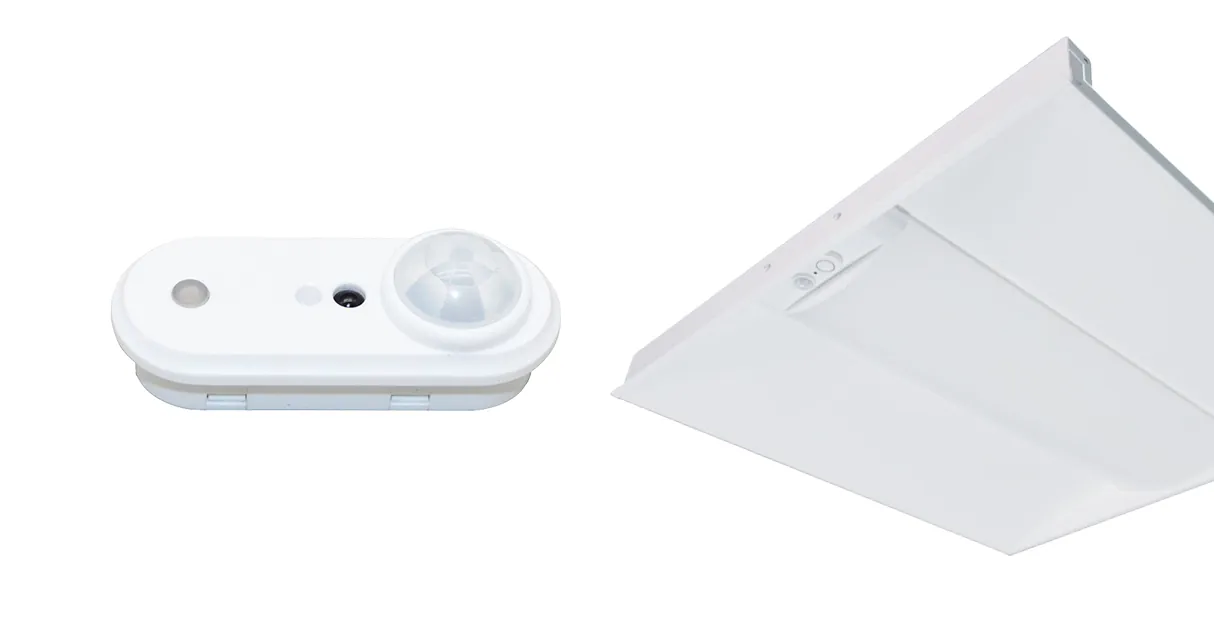

Field Installable or Plug and Play

Field Installable or Plug and Play

Includes a pre-installed receptacle for adding microwave

sensors on-site to save labor costs.

Bluetooth Mesh (LLLC)

Compatible with Silvair BLE mesh controls for high-level

lighting management.

Bluetooth Mesh (LLLC)
Emergency Ready

Emergency Ready

Compatible with 8W Li-ion battery backup options

for emergency safety.

Mounting Variety

Standard recessed mounting with optional surface mount

kits available separately.

Mounting Variety

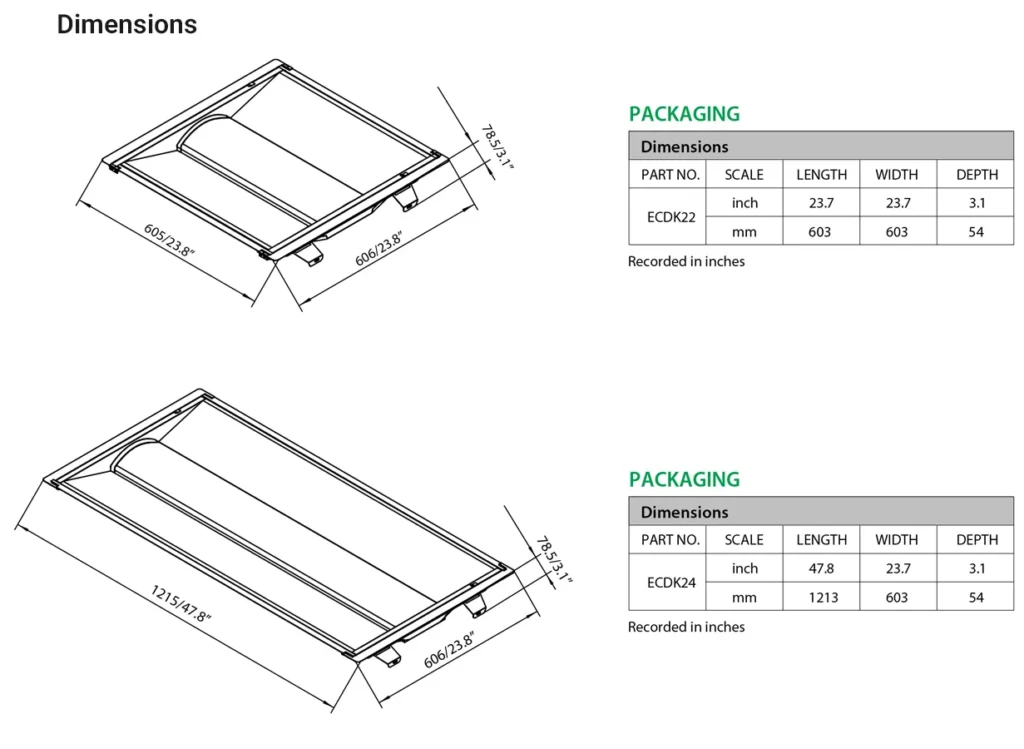

Dr Dimension 02
