Product #: LSW-2FT-30-T1-F-SL
Linear Stairwell Light 2FT(LSW)
Linear Stairwell Light (LSW) – ATG’s DUO Linear Stairwell Fixtures are available in 2′, 4′, and 8′ lengths, with four selectable wattages and three CCT settings, providing flexible lighting solutions for various applications. Featuring a die-cast aluminum sheet metal housing in a modern white finish, along with a frosted acrylic optic, these fixtures offer optimal illumination for stairwells and passageways in both commercial and industrial environments. The LSW model combines an appealing design with high-performance components, ensuring durability and efficiency. Additional options such as a concealed motion sensor and emergency battery backup are available to enhance functionality and safety.
REQUEST A QUOTE
- Specifications
- Description
- Resources & Downloads
- Related Products
Specifications
Input Voltage
120-277VAC
Wattage
10W/15W/20W/30W SELECTABLE
CCT
3000K/4000K/5000K SELECTABLE
Warranty
10 Years
L70 lifetime
216,000 Hrs
Dimming
0-10V

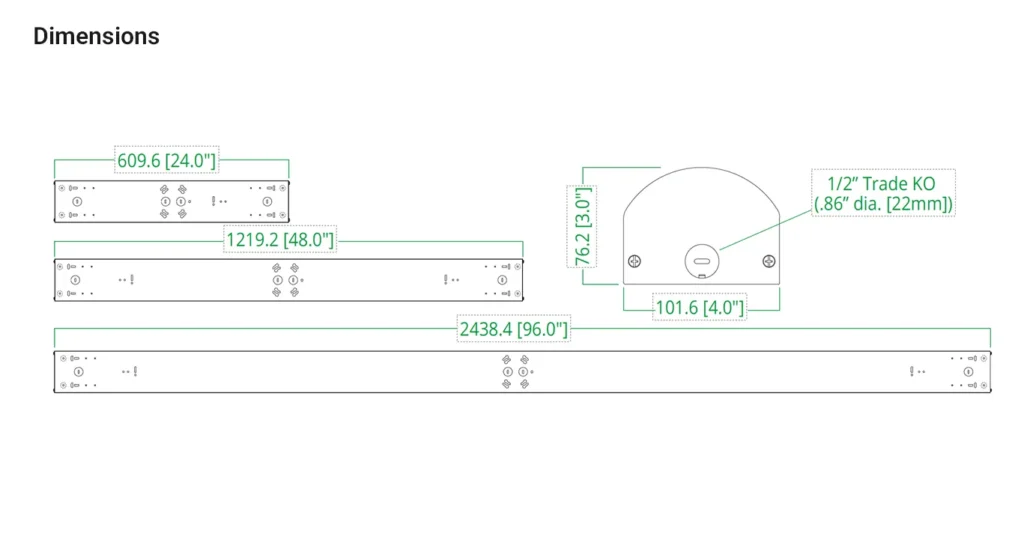

Dimension
2ft
Lumens
4071 LM
Efficacy
124-140 LM/W
Description

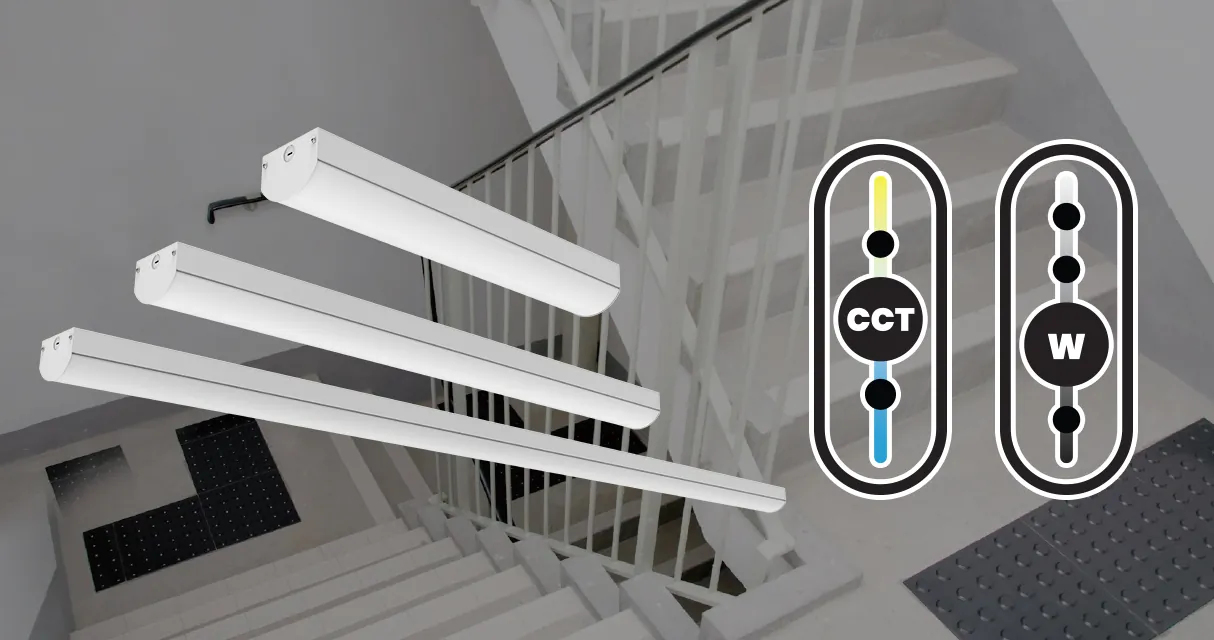

Power & CCT Selectable
Selectable Wattage: Installers can adjust the fixture’s power consumption on-site via a dip switch to dial
in the ideal brightness for varying ceiling and mounting heights.
2FT Model: 10W / 15W / 20W / 30W
4FT Model: 12W / 18W / 25W / 40W
8FT Model: 45W / 60W / 70W / 80W
3-Step CCT Selectable: Features a built-in switch to toggle easily between
three color temperatures (3000K / 4000K / 5000K) to match any space’s exact ambiance.
Available in 2FT, 4FT and 8FT
Comprehensive Sizing: Available in three standard linear configurations—2FT, 4FT, and 8FT—to
seamlessly adapt to corner, wall, or linear layouts across diverse architectural blueprints.
Up to 144 LM/W+, UL & DLC V5.1 Premium
Exceptional Efficiency: Delivers an impressive system efficacy of up to 144 LM/W, maximizing energy savings and dropping
facility electric bills.UL & DLC V5.1 Premium: Guaranteed safety standards paired with elite efficiency for maximum utility rebate eligibility.

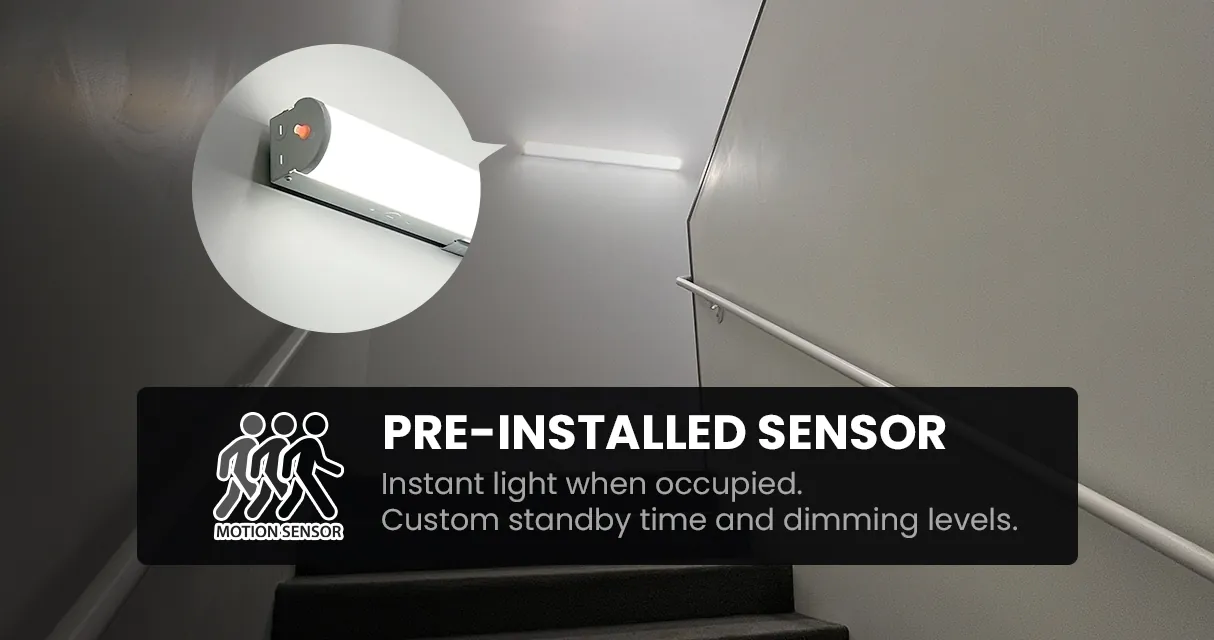

Pre-installed sensor
Comes integrated with a high-precision, concealed motion and
occupancy sensor to maximize automated energy savings.

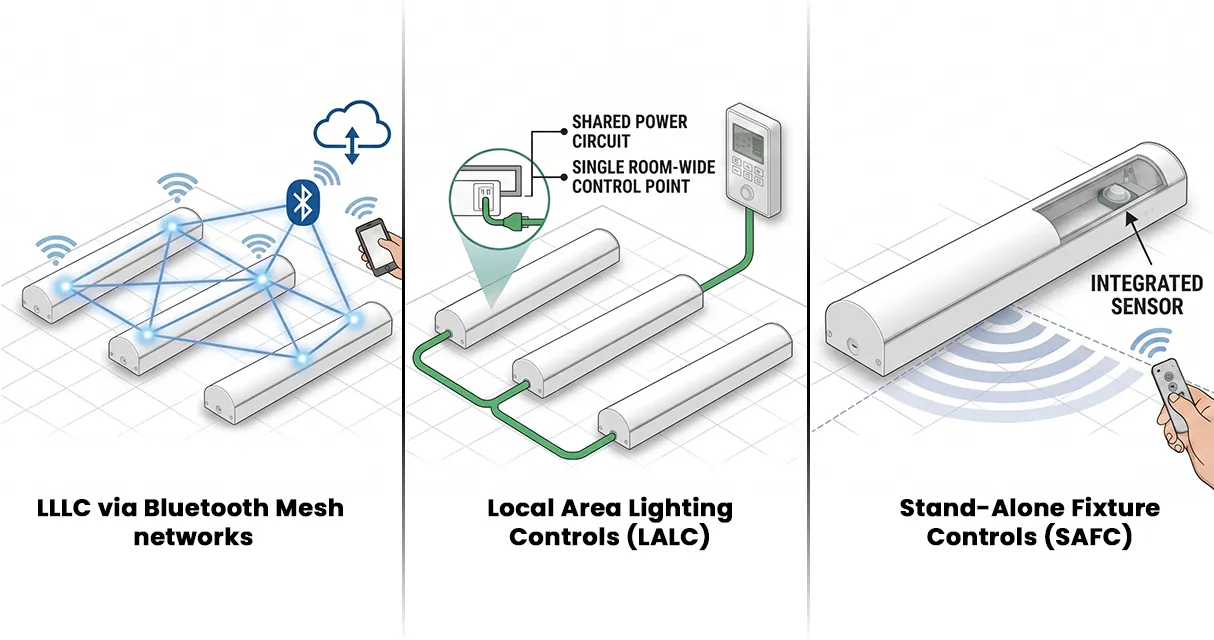

Network Control Capability
Supports advanced network layouts including Luminaire Level Lighting Controls (LLLC via Bluetooth Mesh networks),
Local Area Lighting Controls (LALC), or Stand-Alone Fixture Controls (SAFC).
Rugged Construction
Rated for IP20 environments and engineered to withstand extreme operating temperatures
ranging from-13° F to 104° F (-25℃ to +40℃ )

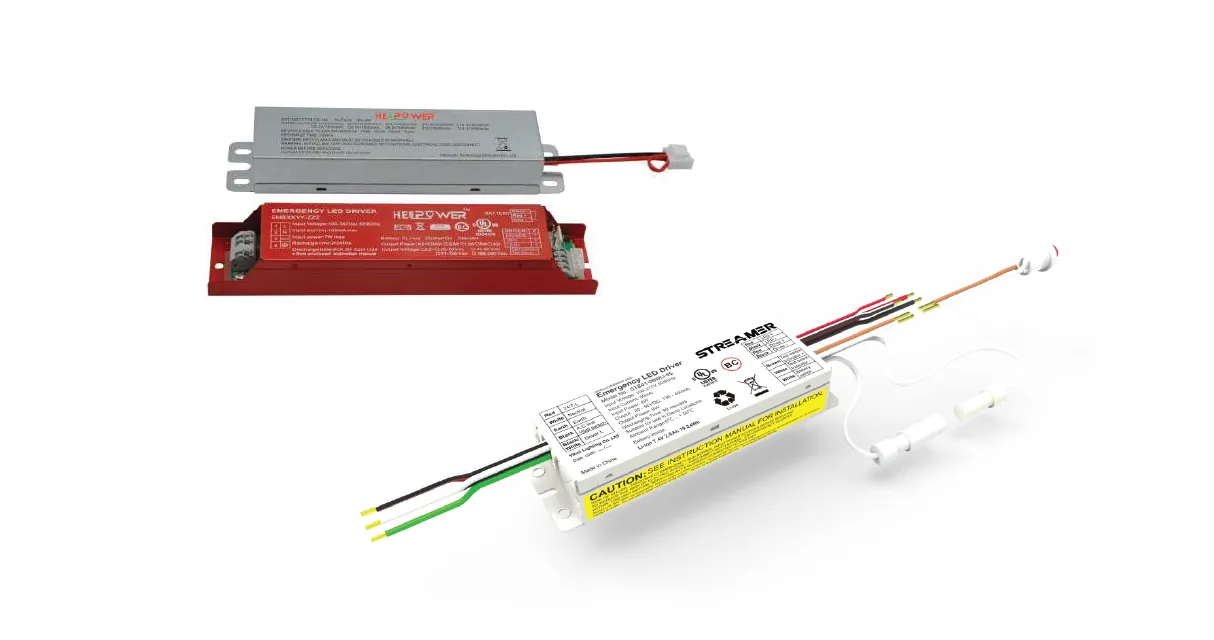

Emergency Battery Backup optional(sold separately)
Compatible with field-installable emergency drivers and split batteries to ensure code-compliant,
uninterrupted illumination during critical power failures (sold separately).
Resources & Downloads
spec sheet
product brochure
installation guide
ies files
