Product #: ECRT22-20W-T1-R0-R1
Value Recess Troffer 2×2(ECRT)
The DUO Switchable Troffer is a versatile, low-profile lighting fixture designed for professional environments that require warm, aesthetically pleasing lighting. It offers two DIP switches for easy adjustments of Correlated Color Temperature (CCT) and lumens. With three selectable CCT options and three lumen package options, it helps reduce inventory costs. Avaialble in 2×2 and 2×4 this lighting solution is ideal for general office use, providing efficient, low-maintenance lighting that avoids the issues commonly associated with other light sources.
REQUEST A QUOTE
- Specifications
- Description
- Resources & Downloads
- Related Products
Specifications
Input Voltage
120-277VAC
Wattage
20W/25W/30W SELECTABLE
CCT
3500K/4000K/5000K SELECTABLE
5 Year Warranty
Yes
L70 lifetime
>100,000 Hrs
Dimming
0-10V

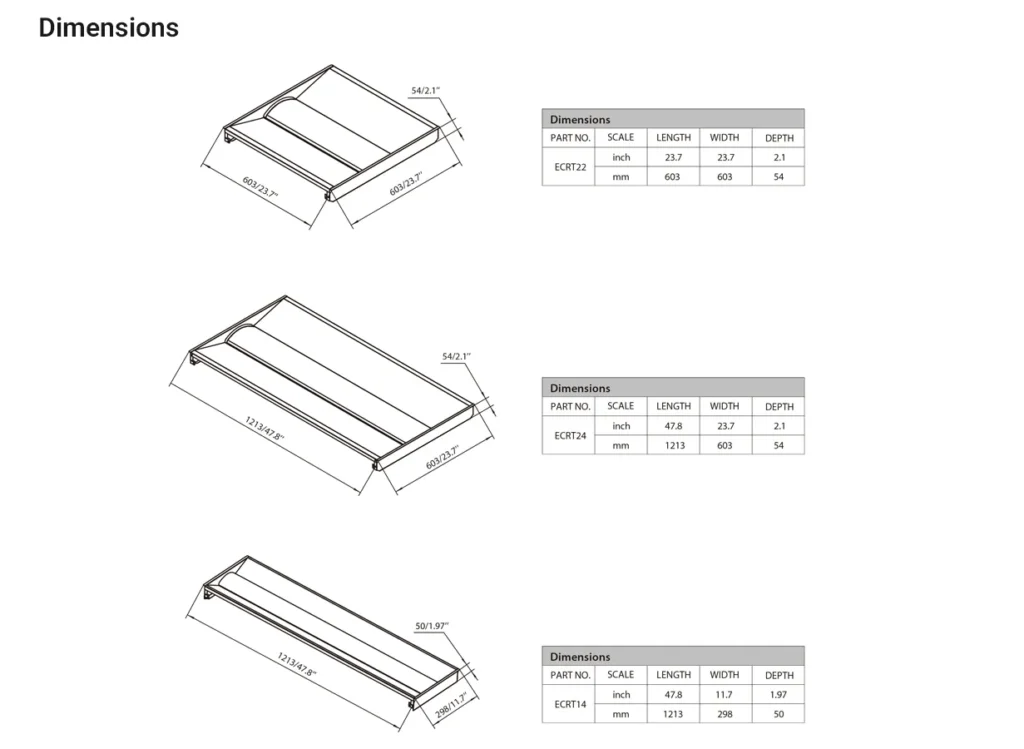

Dimension
2X2
Lumens
4020 LM
Efficacy
133-149 LM/W
Description

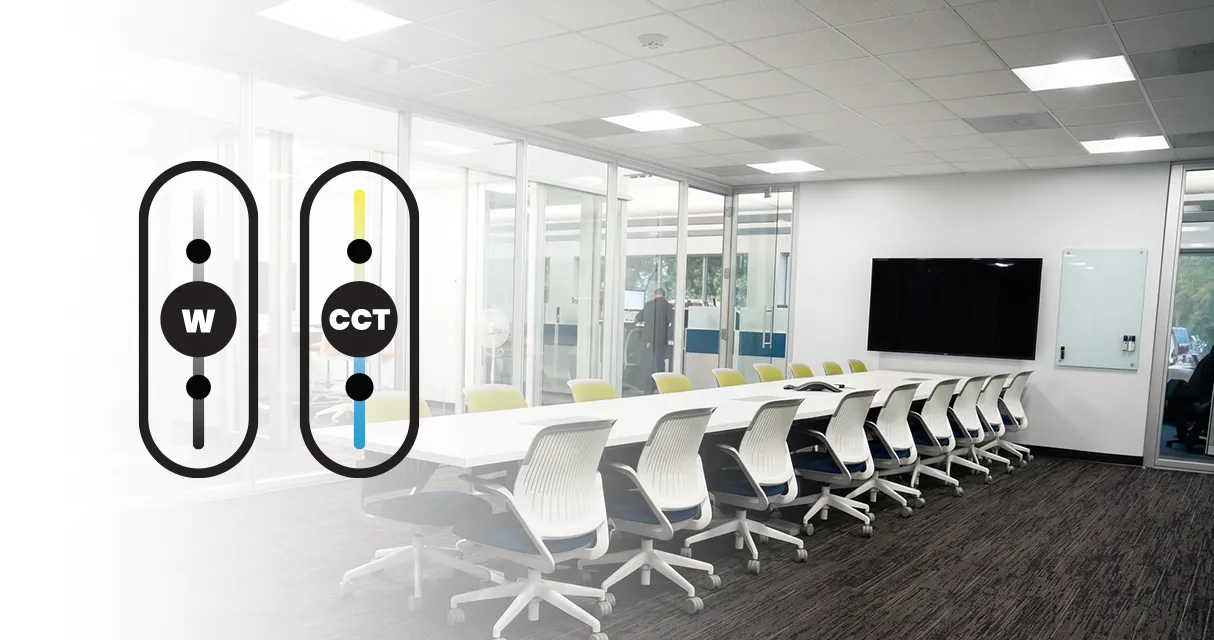

Power & CCT Selectable
3 CCT Options: Users can switch between 3500K, 4000K, and 5000K.
3 Wattage Options: 1×4 & 2×2:
20W/25W/30W.2×4: 25W/30W/35W.
Field Installable or Plug and Play
Includes a pre-installed receptacle for adding microwave
sensors on-site to save labor costs.

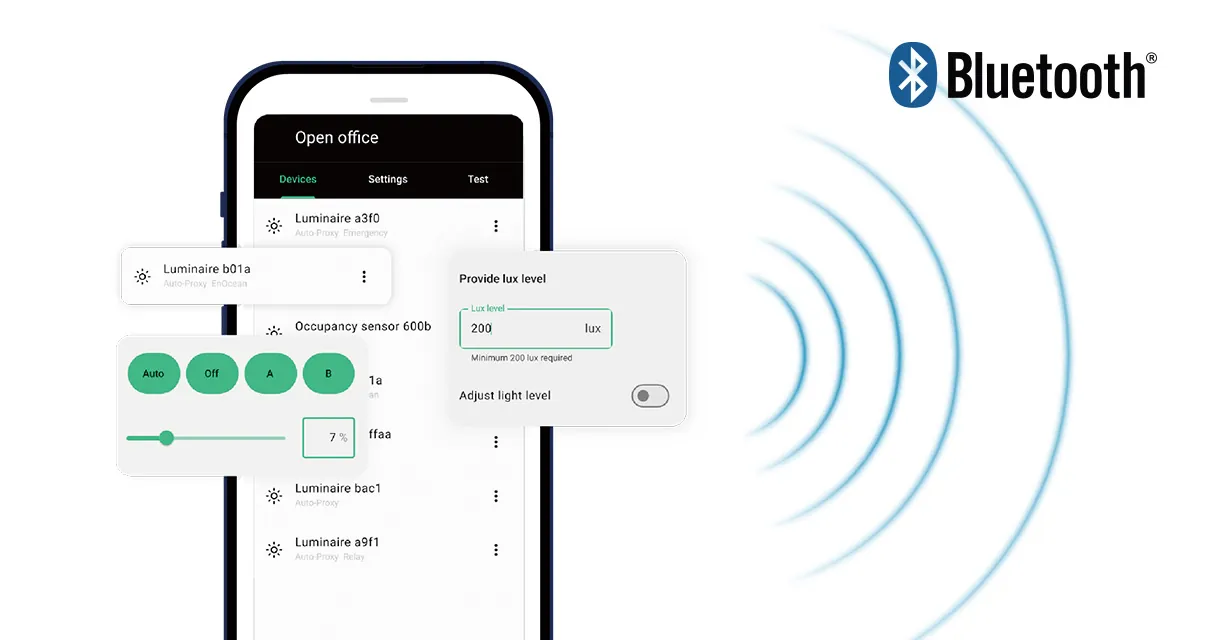

Bluetooth Mesh (LLLC)
Compatible with Silvair BLE mesh controls for high-level
lighting management.

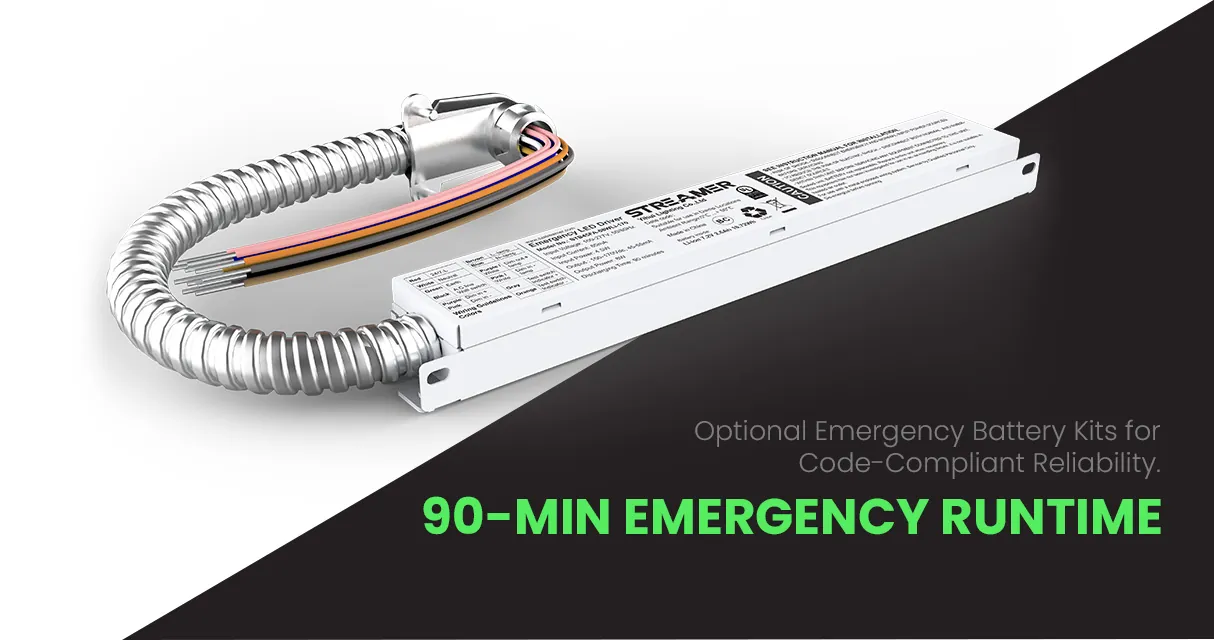

Emergency Ready
Compatible with 8W Li-ion battery backup options
for emergency safety.
Mounting Variety
Standard recessed mounting with optional surface mount
kits available separately.
Resources & Downloads
spec sheet
product brochure
installation guide
ies files
