Product #: FPBL24-30W-T1-RU-E

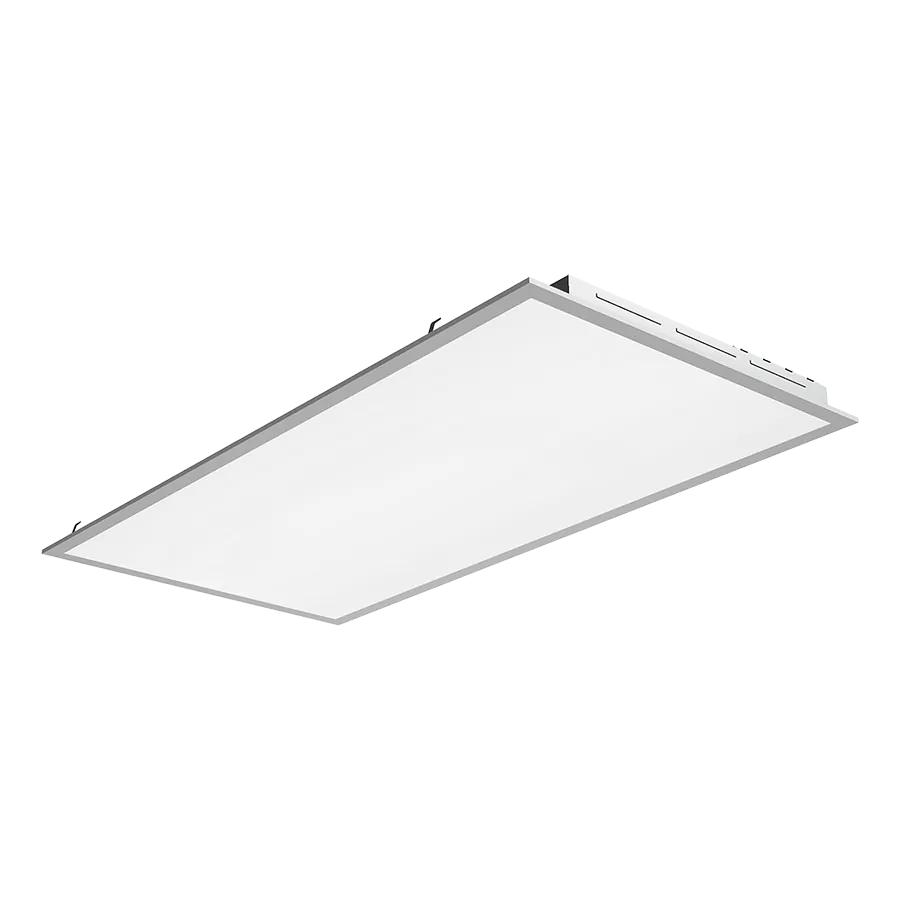

Backlit Flat Panel G2E 2×4(FPBL)
The DUO Selectable Panel offers a low-profile, low-glare, and uniform ambient lighting solution. It features two DIP switches for easy and reliable adjustment of both CCT and lumens, making it a versatile option for a wide range of indoor commercial lighting applications such as offices, retail spaces, and showrooms. Available in 1×4,2×2, and 2×4 options this fixture simplifies the work of specifiers, designers, and contractors by providing a flexible solution for multiple room lighting needs in interior projects.
REQUEST A QUOTE
- Specifications
- Description
- Resources & Downloads
- Related Products
Specifications
Input Voltage
120-277VAC
Wattage
30W/35W/40W SELECTABLE
CCT
3500K/4000K/5000K SELECTABLE
Warranty
5 YEARS
L70 lifetime
>100,000 Hrs
Dimming
0-10V

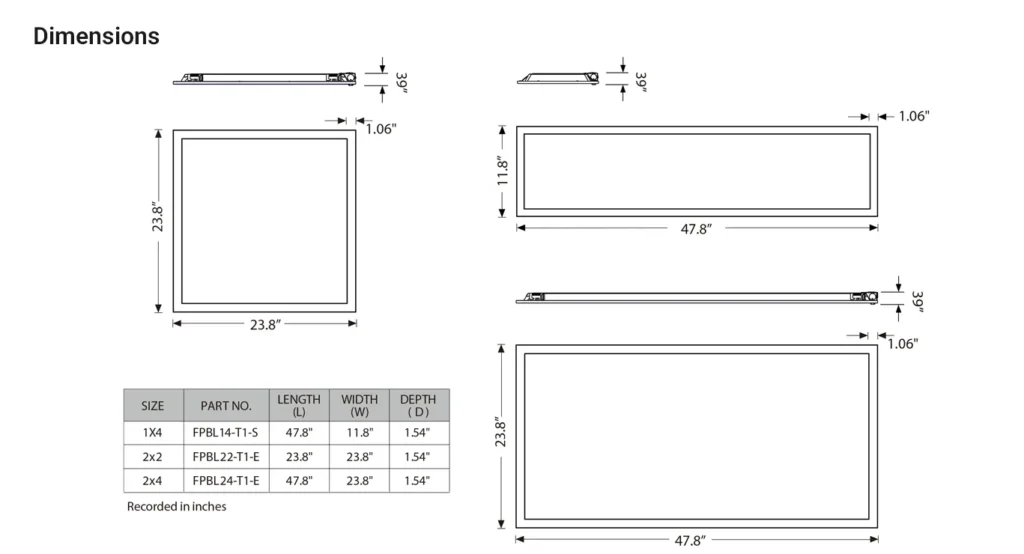

Dimension
2X4
Lumens
5136 LM
Efficacy
123-136 LM/W
Description

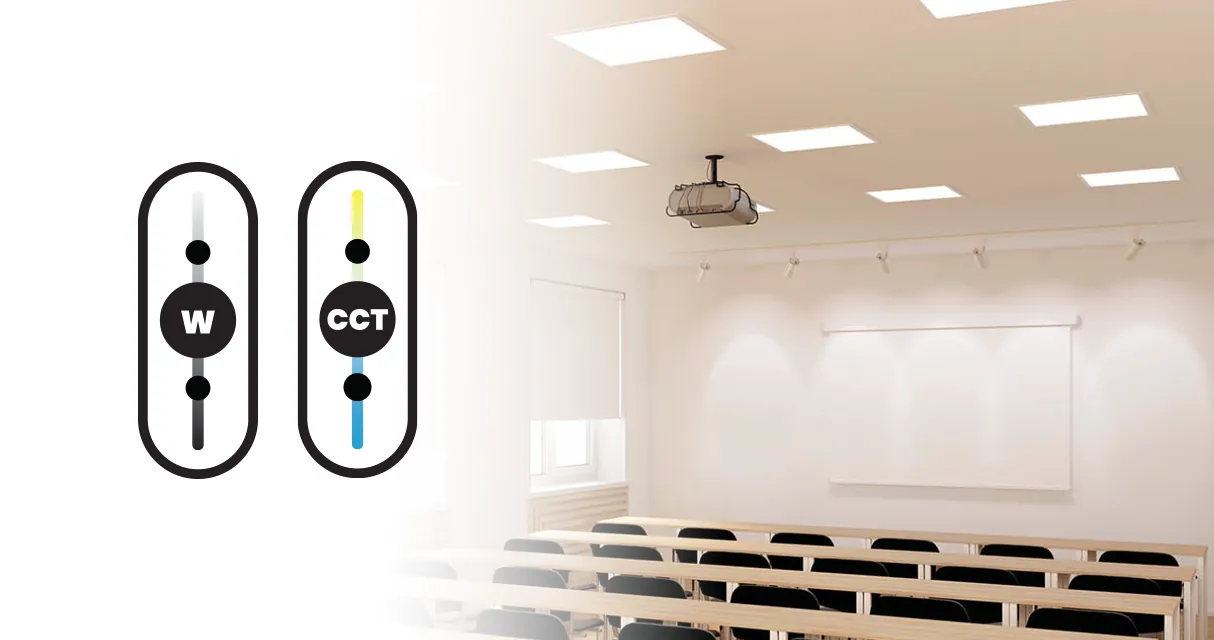

ower & CCT Selectable
3 CCT Options: Users can switch between 3500K, 4000K, and 5000K.
3 Wattage Options: 1×4 & 2×2: 20W/25W/30W.2×4: 25W/30W/35W.
Field Installable or Plug and Play
Includes a pre-installed receptacle for adding
microwave sensors on-site to save labor costs.

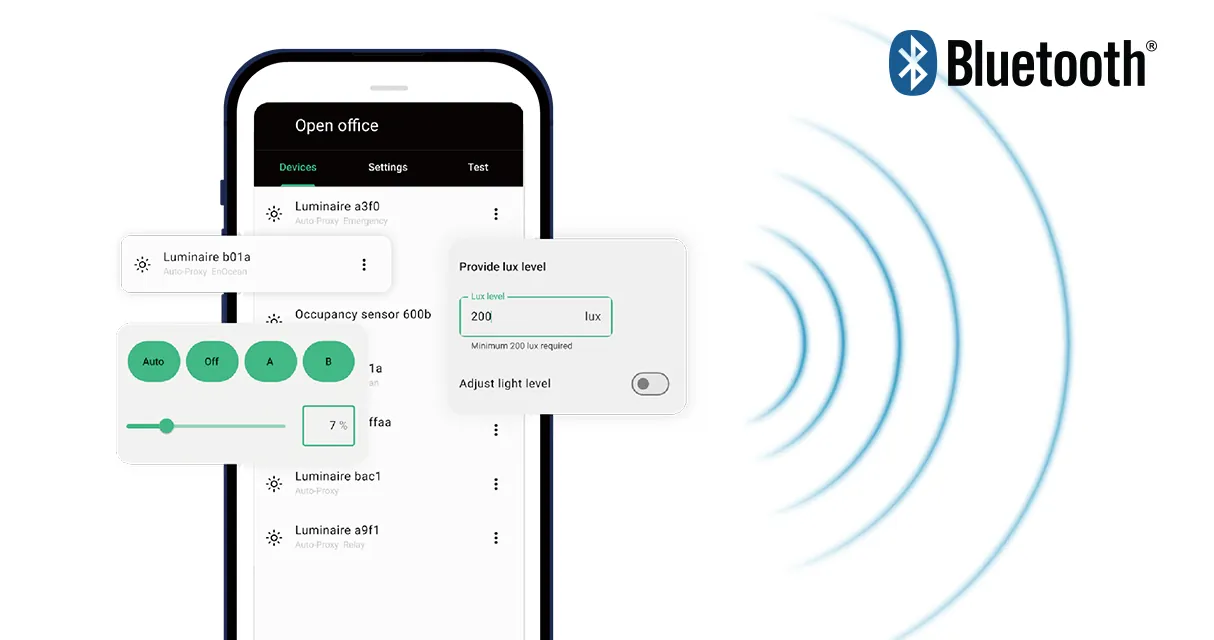

Bluetooth Mesh (LLLC)
Compatible with Silvair BLE mesh controls for
high-level lighting management.

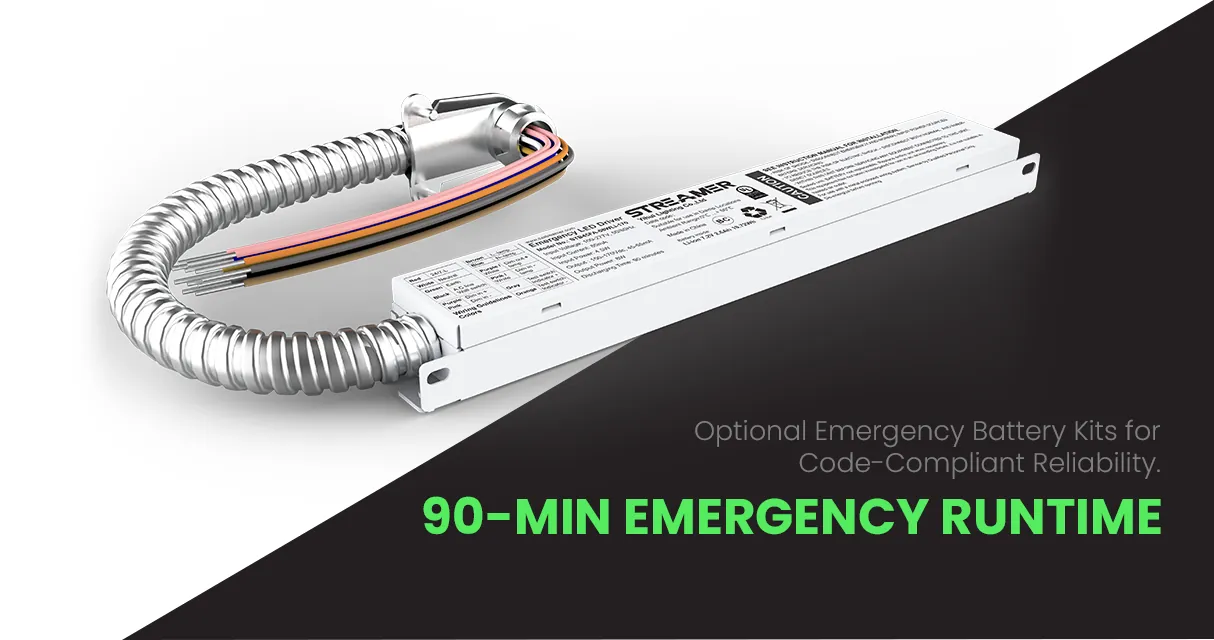

Emergency Ready
Compatible with 8W Li-ion battery backup
options for emergency safety.
Mounting Variety
Standard recessed mounting with optional surface
mount kits available separately.
Resources & Downloads
spec sheet
product brochure
installation guide
