Product #: EDF6-15W-T1
eLucent Fire Rated Downlight 6” 15W(EDF)
The EDF Fire-Rated Downlights are code-compliant for use in fire-rated constructions for up to 2 hours. They offer multiple CCT options (2700K, 3000K, 3500K, 4000K, and 5000K) for flexible lighting needs. The downlights feature a steel housing for durability and fire resistance, with edge-lit technology for a slim fixture profile. The optical system ensures uniform light distribution, utilizing high-performance LEDs with a 90+ CRI and an R9 > 60. Electrical specifications include 120VAC input voltage and an operating temperature range of -40°F to 113°F. The fixtures are dimmable to 5% with TRIAC dimmers. They feature a white powder coat finish with a red powder coat on the backside for fire resistance. Installation is simplified with spring-loaded retention tabs, remote driver/junction box, and quick connectors.
REQUEST A QUOTE
- Specifications
- Description
- Resources & Downloads
- Related Products
Specifications
Input Voltage
120V
Wattage
15W
CCT
2700K/3000K/3500K/4000L/5000K SELECTABLE
5 Year Warranty
Yes
L70 lifetime
>100,000 Hrs
Dimming
Triac
Dimension
6 inch
Lumens
1650 LM
Efficacy
91-110 LM/W
Description

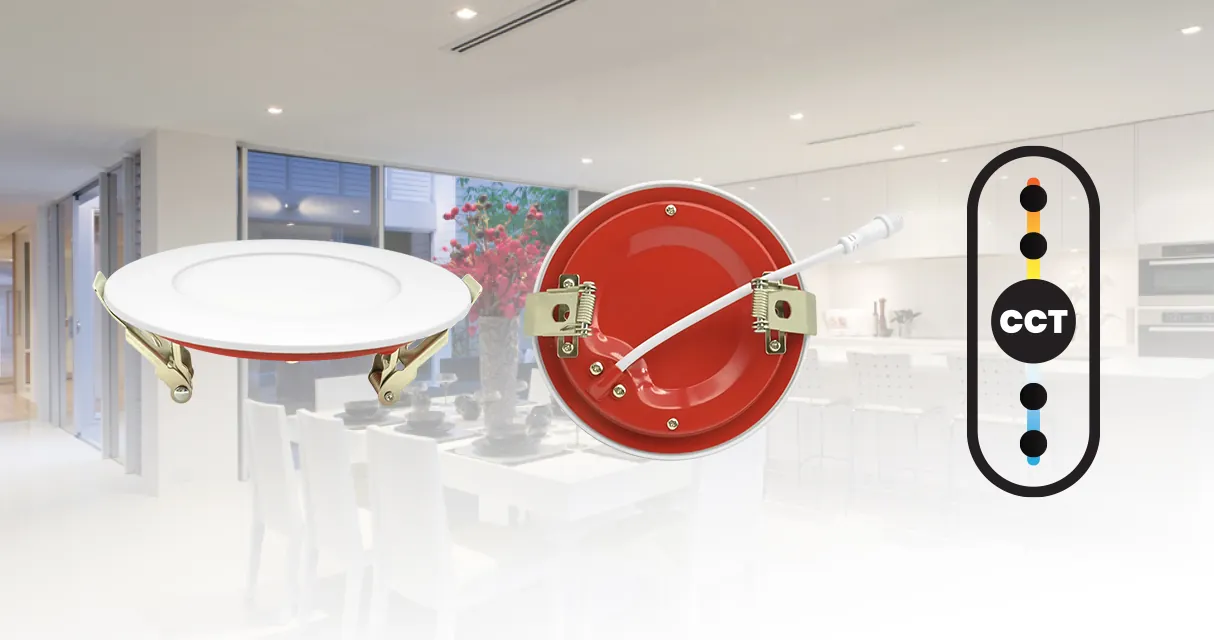

5 step CCT selectable
single fixture offers five color temperature options:
2700K, 3000K, 3500K, 4000K, and 5000K.

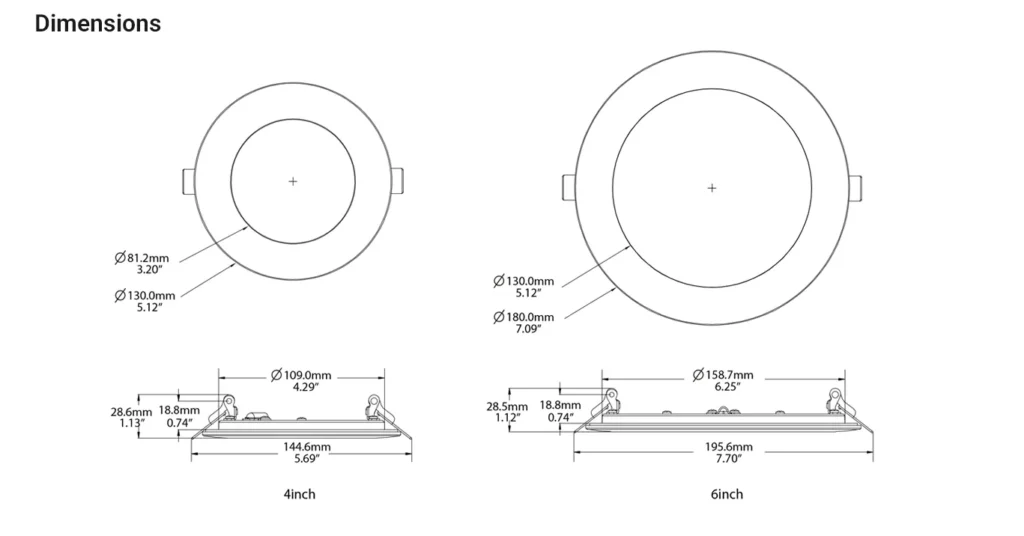

4’’ & 6’’ in size
Available in both 4-inch (9W or 12W) and 6-inch
(12W or 15W) models.
UL 263 certified for 2 Hr fire resistance
Protect your space with UL 263 certified 2-hour fire protection. Featuring a specialized red-coated
steel housing to denote fire resistance, the eLucent downlight restricts flame spread for up to
120 minutes—making it the premier choice for high-occupancy safety.

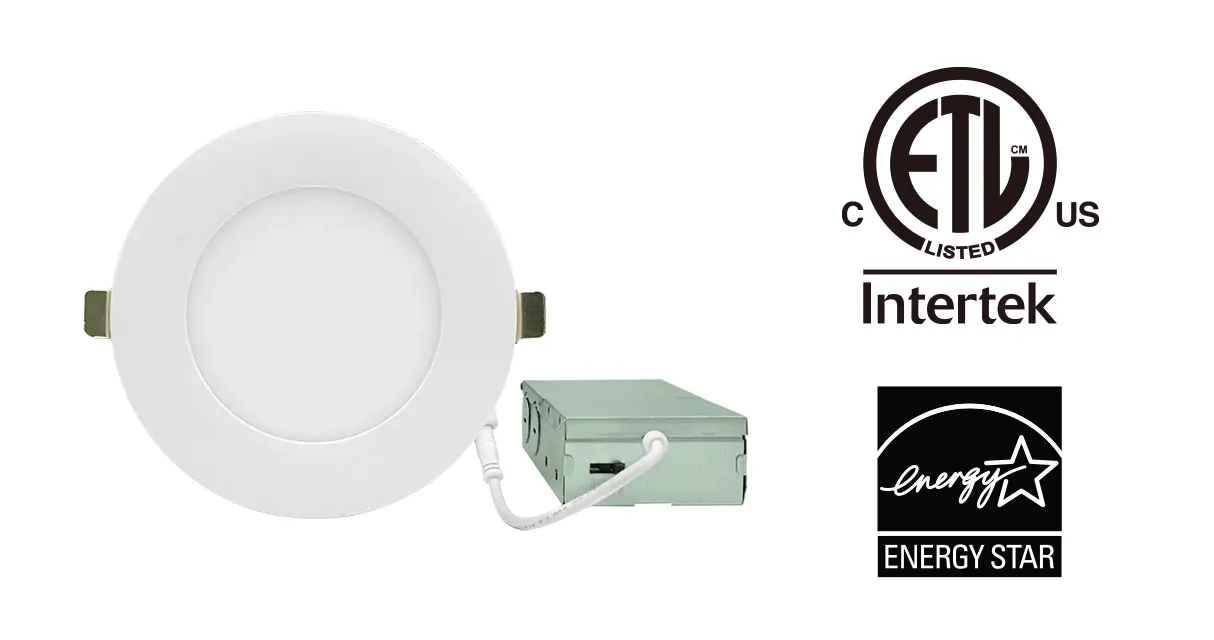

UL and Energy Star Listed
UL Listed: Rigorously tested for safety and performance in wet locations.
Energy Star Certified: Optimized for energy efficiency to lower operational costs and environmental impact.

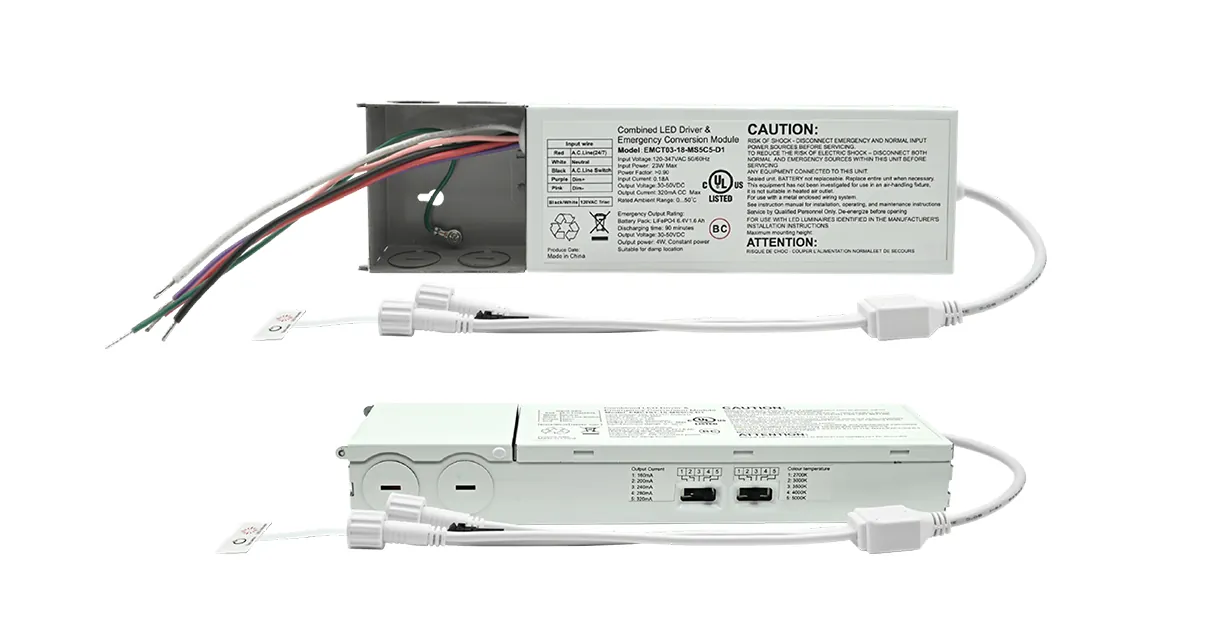

Emergency Battery Backup optional(sold separately)
Optional emergency backup unit sold separately
to fit your project requirements.
Resources & Downloads
spec sheet
product brochure
installation guide
ies files
