Product #: CLI6-40W-T1
Architectural Cylinder (CLI6)
The ATG CLI6 Cylinders feature a low-profile, low-glare, and low-flicker design with a classic aesthetic. Precision-crafted from extruded high-quality cast aluminum and machined aluminum, these fixtures include integral LEDs and drivers. They offer three CCT options and three wattage choices for versatile lighting solutions. The standard optics include a 40° beam spread refractor, with optional 20°, 30°, and 50° refractors available separately. Designed for ease of maintenance and service, the CLI6 comes in a variety of finishes, mountings, lumens, and beam spreads, making it a great replacement for halogen “Mini-Can” fixtures.
REQUEST A QUOTE
- Specifications
- Description
- Resources & Downloads
- Related Products
Specifications
Input Voltage
120-277VAC
Wattage
20W/30W/40W SELECTABLE
CCT
3000K/3500K/4000K SELECTABLE
Warranty
10 Years
L70 lifetime
>100,000 Hrs
Dimming
0-10V
Dimension
6 inch
Lumens
4362 LM
Efficacy
102-113 LM/W
Description

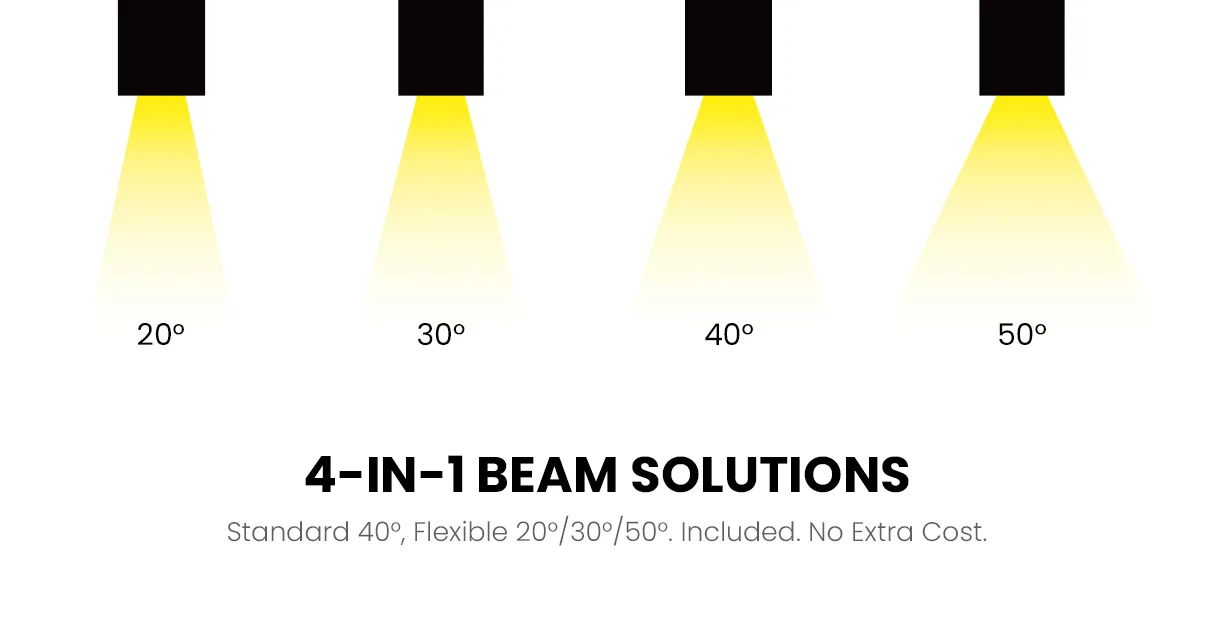

Interchangeable Optics
Standard 40° beam; 20°, 30°, and 50° reflectors
included for flexible mounting heights.

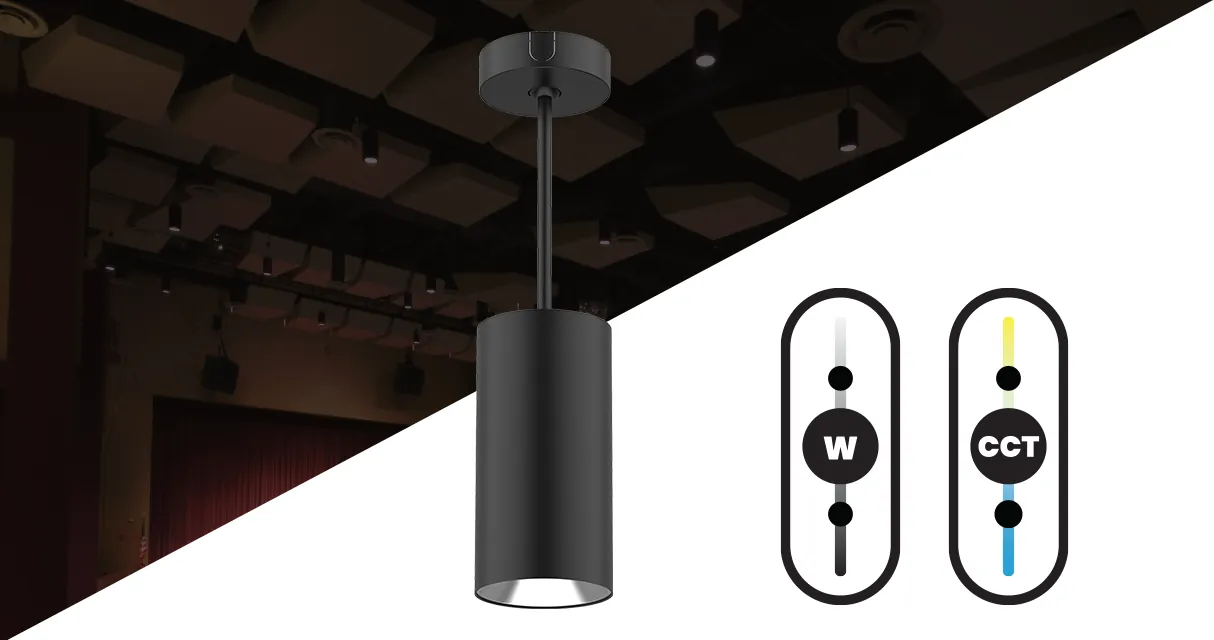

Superior Versatility
Power Selectable: Adjust the wattage between 20W, 30W, and 40W.
CCT Selectable: Switch between 3000K, 3500K, and 4000K color temperatures.

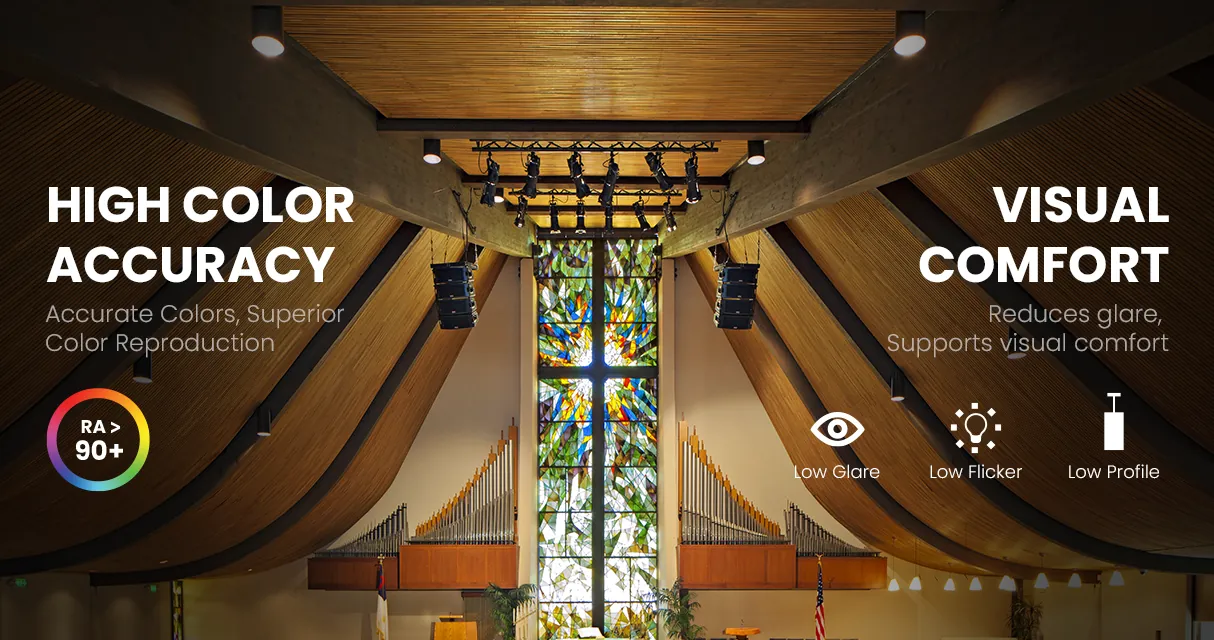

High-Performance Lighting Quality
Experience superior color reproduction with Ra > 90 and ultimate visual
comfort via a low-profile, low-glare, and flicker-free design.

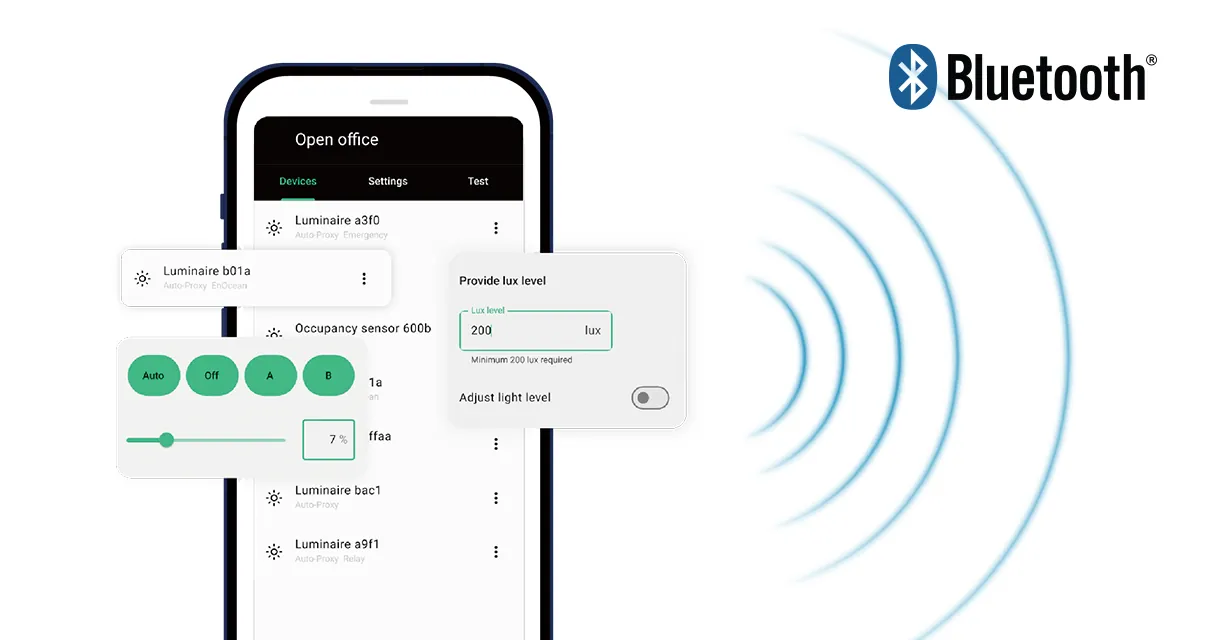

Smart Integration
Available with an optional Integrated BLE Mesh Module for wireless
dimming and ON/OFF control via smartphone, tablet, or PC.

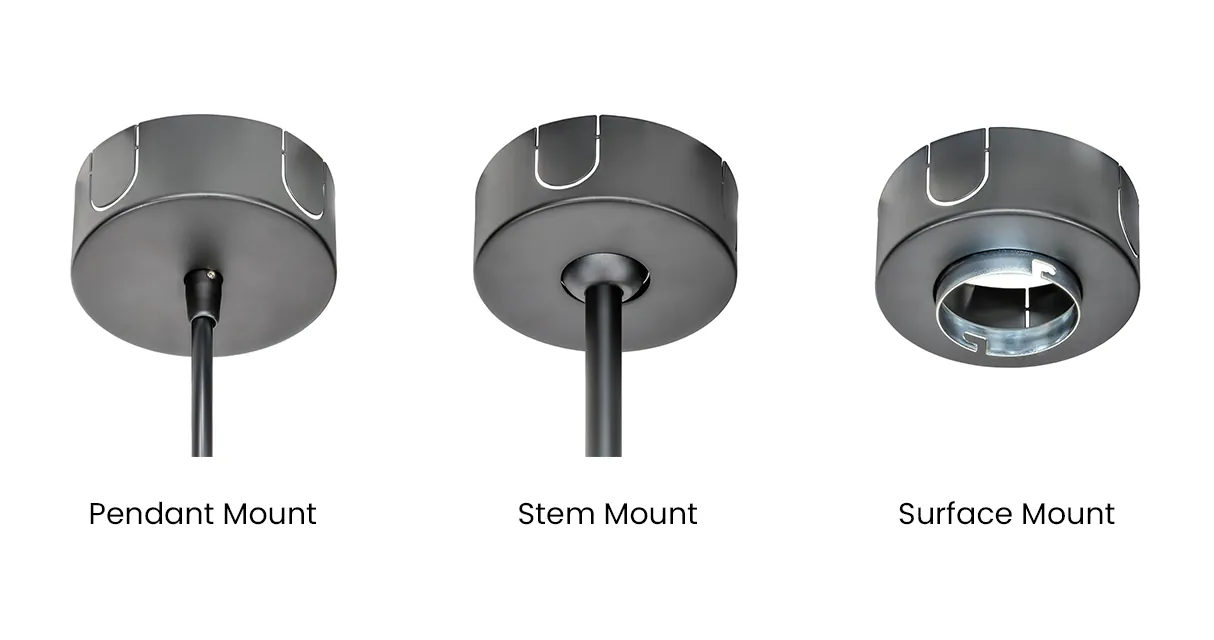

Flexible Mounting & Applications
Versatile Mounting: Supports Stem (12″-96″), Cable, or Surface/Ceiling mounting.
Diverse Use: Ideal for Houses of Worship, schools, lobbies, and museums.
Resources & Downloads
product brochure
installation guide
ies files
